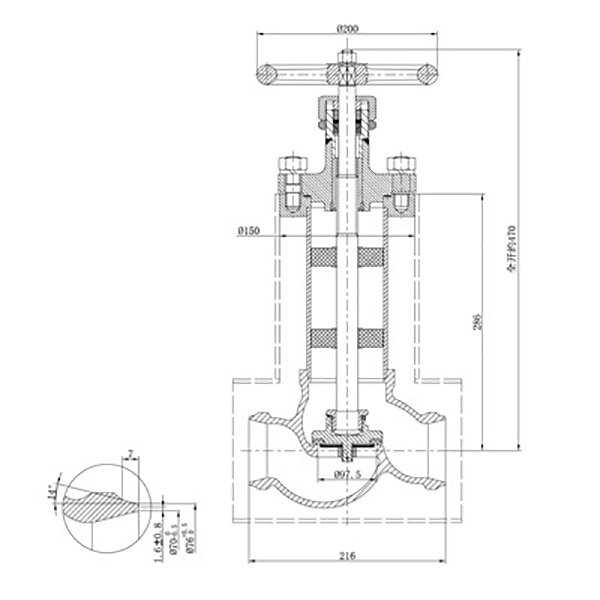

cryogenic globe valve DZJ 65

Get a Price/Quote

MOQ : 1 Piece

cryogenic globe valve DZJ 65 Specification

Color
Metallic Silver

Capacity
DN65 (2.5 Inches)

Material
Stainless Steel

Application
Cryogenic Service (Cryogenic Liquids such as LNG, LOX, LCO2, LIN, LAR)

Noise Level
Low

Size
DN65 / 2.5 Inch

Automatic Grade
Manual

Control System
Handwheel Operated

Processing Type
Cryogenic Valve

Thickness
Standard Valve Thickness

Weight
Approx 10-15 kg

Leakage Rate
ANSI Class VI (Bubble Tight)

Bonnet Type
Extended Bonnet suitable for Cryogenic Applications

Stem Type
Rising Stem

Seal Type
PTFE or Metal Seated

End Connection
Flanged or Butt Weld

Working Temperature
-196°C to +80°C

Pressure Rating
PN16 / PN25 / Class 150

Operating Medium
Liquid Oxygen, Liquid Nitrogen, Liquid Argon, LNG, etc.

Gasket Material
PTFE / Graphite

Testing
100% Pressure and Leak Tested

Packaging
Standard Export Packing

Flow Characteristic
Linear

Body Material
CF8/CF8M or Stainless Steel Grade 304/316

Design Standard
GB, ANSI, or customized specification

Port Type
Full Bore

Face to Face Dimension
As per DIN/ASME Standard

cryogenic globe valve DZJ 65 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
SHANGHAI

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
50 Pieces Per Month

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
wooden box

Main Domestic Market
All India

Certifications
CE

About cryogenic globe valve DZJ 65

Explore the DZJ 65 Cryogenic Globe Valve, where towering performance meets incomparable engineering. Customizable to GB, ANSI, or your unique specifications, this lavish stainless steel valve thrives in extreme temperatures from -196C to +80C. Boasting a full-bore, linear flow with ANSI Class VI leakage integrity, it features a robust extended bonnet and rising stem design. Experience flexible end connections-choose from flanged or butt weld. Get unmatched reliability and durability for liquid oxygen, nitrogen, argon, LNG, and more. Ideal for critical cryogenic service, distributor and exporter ready.

Widest Range of Applications Across Cryogenic Industries

The cryogenic globe valve DZJ 65 is suitable for a vast array of applications, extending beyond traditional industrial plants. It can be installed at gas processing units, LNG terminals, chemical manufacturing sites, and medical gas supply systems. Specifically designed for cryogenic services, it is the optimal choice for handling liquid oxygen, nitrogen, argon, and LNG. Engineered for adaptability, it performs excellently wherever precise flow control and absolute leak-tightness are required, ensuring operational safety across multiple industries.

International Export Markets, Flexible Terms & Certified Assurance

DZJ 65 cryogenic globe valves are exported to global markets, including Europe, Southeast Asia, the Middle East, and the Americas. Order processing is swift and transparent, accommodating customized proposal amounts and competitive rates to suit client requirements. Standard payment terms are flexible, supporting T/T, L/C, and other major methods. Each valve carries internationally recognized certifications and thorough testing records, giving clients assurance of uncompromising quality and compliance with industrial standards.

FAQ's of cryogenic globe valve DZJ 65:

Q: How does the DZJ 65 cryogenic globe valve ensure bubble-tight leakage prevention?

A: The DZJ 65 valve is designed with high-performance PTFE or metal seats and a precise rising stem mechanism, achieving ANSI Class VI bubble-tight leakage protection even under extreme cryogenic conditions.

Q: What end connection options are available for this cryogenic globe valve?

A: You can choose between flanged or butt weld end connections, each manufactured according to industry standards, ensuring compatibility with diverse system requirements.

Q: When should I use a cryogenic globe valve with an extended bonnet?

A: An extended bonnet is essential for cryogenic applications, as it insulates the stem and prevents ice formation, maintaining smooth operation when handling extremely low-temperature fluids like LNG and LOX.

Q: Where can the DZJ 65 valve be installed in a facility?

A: This valve is suitable for installation in cryogenic storage tanks, transfer lines, process skids, and gas distribution systems at LNG terminals, air separation plants, chemical factories, and medical facilities.

Q: What is the process for order placement and delivery of the DZJ 65 valve?

A: Clients can request a customized proposal. After agreeing on price and specifications, order processing commences with comprehensive testing and export-standard packing, ensuring prompt worldwide delivery.

Q: What are the primary benefits of choosing CF8M body material for this valve?

A: Selecting CF8M (316 stainless steel) body material offers enhanced corrosion resistance and durability, crucial for ensuring longevity and safety in demanding cryogenic service environments.
